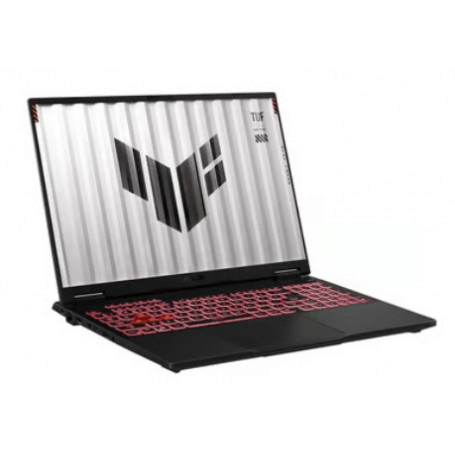

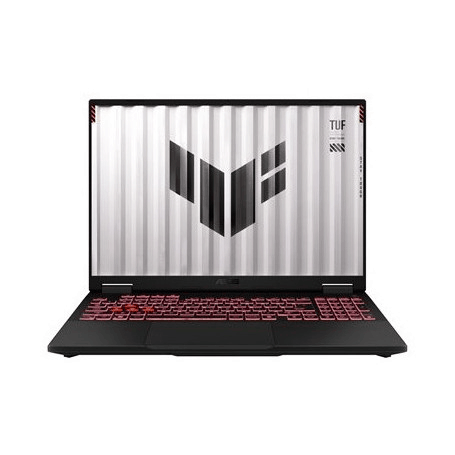

ASUS 16" WUXGA 1920 x 1200 165Hz - AMD R7 260 - 32Go - 1To SSD

Model TUF608UP / 90NR0KT1-M006A0
Marketing Name ASUS TUF Gaming A16
Operating System Windows 11 Home
Office 1-month trial for new Microsoft 365 customers. Credit card required.
Color Jaeger Gray
Dimension (W x D x H) 35.4 x 26.9 x 1.79 ~ 2.57 cm (13.94" x 10.59" x 0.70" ~ 1.01")
Weight 2.20 Kg (4.85 lbs)
Processor
AMD Ryzen™ 7 260 Processor 3.8GHz (24MB Cache, up to 5.1 GHz, 8 cores, 16
Threads); AMD XDNA™ NPU up to 16TOPS
Chipset N/A
Intergrated GPU AMD Radeon™ 780M Graphics
Discrete/Optimus MUX Switch + NVIDIA® Advanced Optimus
Graphic NVIDIA® GeForce RTX™ 5070 Laptop GPU
Graphic Wattage
1595 MHz* at 55W (1545 MHz Boost Clock+50MHz OC, 100W + 15W Dynamic
Boost)
Graphic Memory 8GB GDDR7
Neural Processor AMD XDNA™ NPU up to 16TOPS
Panel Size 16-inch
Resolution FHD+ 16:10 (1920 x 1200, WUXGA)
Refresh Rate 165Hz
Response Time (G2G) 3ms
Viewing Angle 85/85/85/85
Panel Tech IPS-level
Brightness 300 nits
Contrast Ratio 1000:1
NTSC % 72.00%
SRGB % 100%
Adobe % 75.35%
Surface texture of display Anti-glare(AG) display

Adaptive-Sync technology G-Sync
Pantone N/A
Support Dolby Vision HDR N/A
On board memory N/A
DIMM Memory
16GB DDR5-5600 SO-DIMM, the memory speed of the systems vary by CPU
SPEC *2
Total System Memory DDR5 32GB
Memory Slot 2x SO-DIMM slots
Memory Max. 64GB
How to upgrade memory Upgradable
Storage 1TB PCIe® 4.0 NVMe™ M.2 SSD
M.2 slots support either SATA or
NVMe
2
M.2 SSD Support List
M.2 PCIe 512mb
M.2 PCIe 1TB
M.2 PCIe 2TB
Expansion Slot (includes used)
2x DDR5 SO-DIMM slots
2x M.2 PCIe
LAN 10/100/1000 Mbps
Wireless
Wi-Fi 6E(802.11ax) (Triple band) 2*2 + Bluetooth® 5.4 Wireless Card
(*Bluetooth® version may change with OS version different.)
I/O Ports
1x RJ45 LAN port
1x Type-C USB 4 with support for DisplayPort™ (data speed up to 40Gbps)
1x USB 2.0 Type-A (data speed up to 480Mbps)
1x USB 3.2 Gen 2 Type-C with support for DisplayPort™ / power delivery / GSYNC
(data speed up to 10Gbps)
2x USB 3.2 Gen 2 Type-A (data speed up to 10Gbps)
Display output 1x HDMI 2.1 FRL
Camera 1080P FHD IR Camera for Windows Hello
Mic Built-in array microphone
Keyboard Type
Backlit Chiclet Keyboard 1-Zone RGB
With Copilot key
*Copilot in Windows (in preview) is rolling out gradually within the latest
update to Windows 11 in select global markets. Timing of availability varies by
device and market. Learn more: https://www.microsoft.com/enus/
windows/copilot-ai-features?r=1#faq
Aura Sync Yes
Touchpad
Touchpad
N/A

Speakers 2-speaker system
Audio
1x 3.5mm Combo Audio Jack
Built-in array microphone
Audio Tech
AI noise-canceling technology
Dolby Atmos
Hi-Res certification (for headphone)
Support Microsoft Cortana near field/far field (Microsoft service suspended in
spring of 2023.)
Security
BIOS Administrator Password and User Password Protection
Pluton Security Processor
Secured-core PC (Level 3)
Antivirus McAfee® 30 days free trial
Battery 90WHrs, 4S1P, 4-cell Li-ion
Fast charging Recharge from 0-50% in 30 minutes
Charger included Included
Power
Rectangle Conn, 240W AC Adapter, Output: 20V DC, 12A, 240W, Input:
100~240C AC 50/60Hz universal
Required charging power
Min: 45W
Max: 100W
*The indicated wattage is for demonstrating the system’s support capability as
required by EU regulations. For optimal system performance, please use the
standard-wattage adapter or higher.
Xbox Game Pass
Xbox Game Pass Premium_2 months (*Terms and exclusions apply. Offer only
available in eligible markets for Xbox Game Pass Premium. Eligible markets are
determined at activation. Game catalog varies by region, device, and time.)
Ecolabels & Compliances
ENERGY STAR®
EPEAT Silver
Reparability Index (for France) 9.9
Reparability Index (for BNL) 9.8
